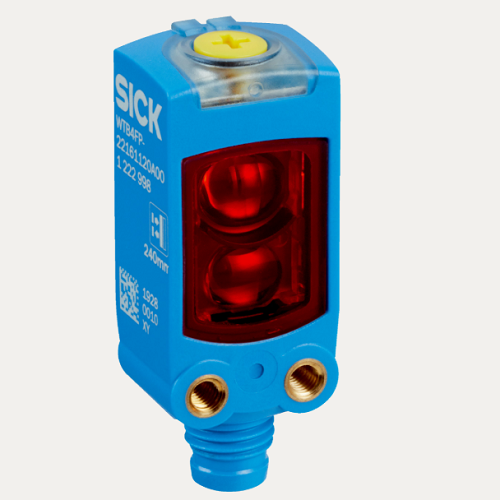

WTB4FP-22161120A00 Part no.: 1122375 Photoelectric sensors

WTB4FP-22161120A00 Part no.: 1122375

Photoelectric sensors



Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Sensing range
Sensing range min. 4 mm
Sensing range max. 200 mm
Reference object Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum distance between set sensing range and background (black 6% / white 90%) 3 mm, at a distance of 80 mm
Emitted beam
Light source PinPoint LED
Type of light Visible red light
Shape of light spot Point-shaped
Light spot size (distance) Ø 4.2 mm (130 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.5° (at Ta = +23 °C)
