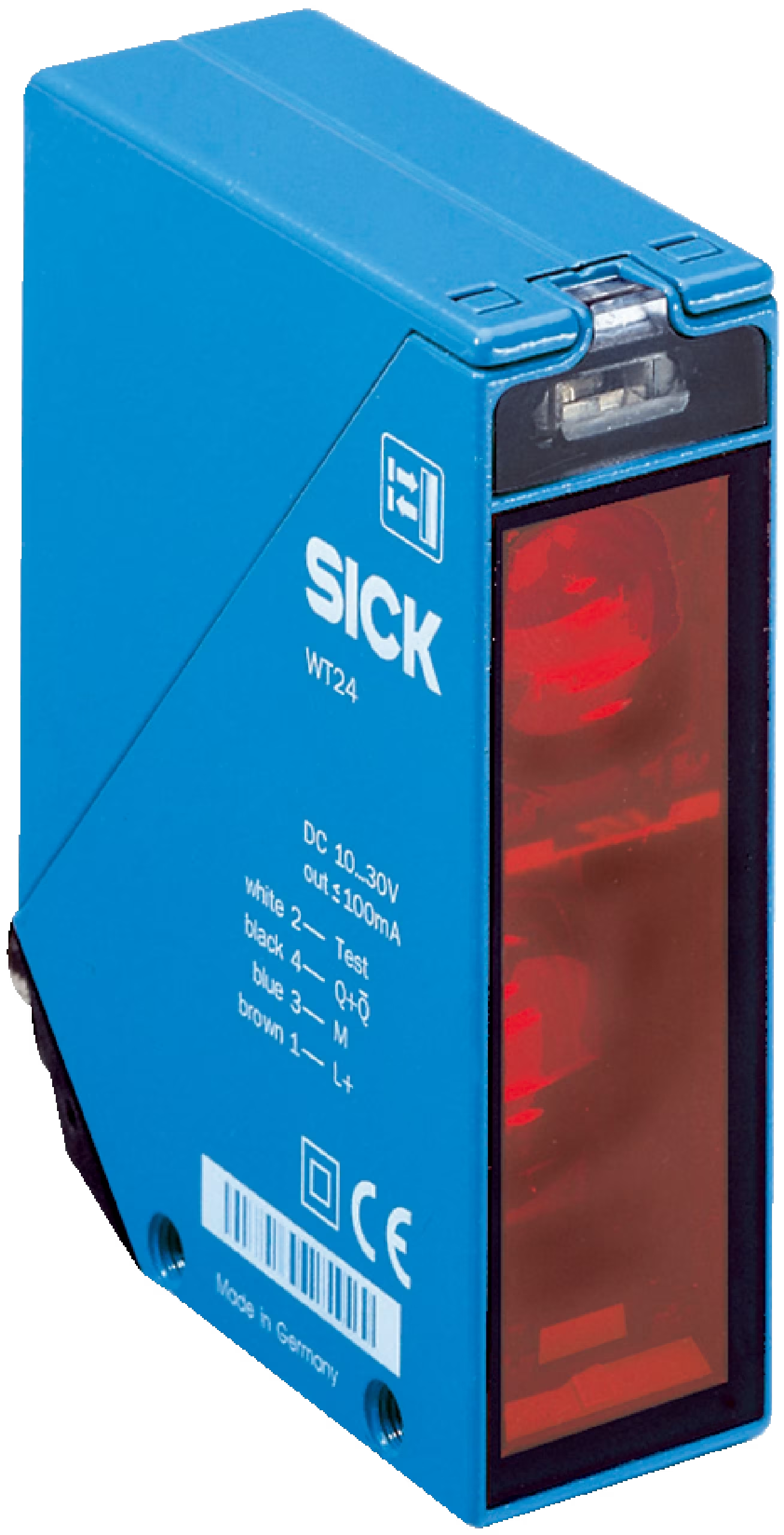

WT24-2R210 Photoelectric sensors Part no.: 1016932

Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Dimensions (W x H x D) 27 mm x 87.5 mm x 65 mm Housing design (light emission) Rectangular Sensing range max. 100 mm ... 2,500 mm 1) Sensing range 100 mm ... 2,500 mm 1) Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 80 mm (2,500 mm) Adjustment Potentiometer 1) Object with 90% remission (based on standard white, DIN 5033). 2) Average service life: 100,000 h at TU = +25 °C.
