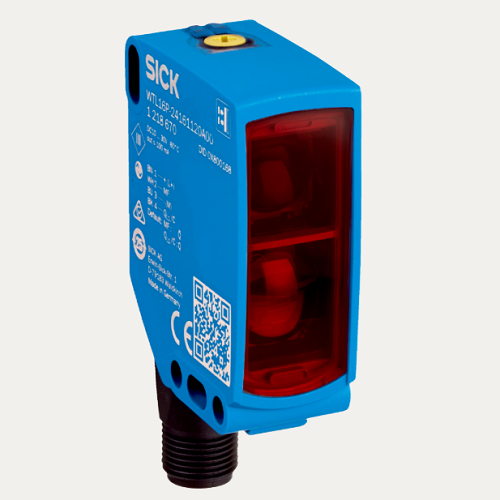

WTB26I-24161120A00 Part no.: 1218667 Photoelectric sensors

WTB26I-24161120A00 Part no.: 1218667 Photoelectric sensors

Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Sensing range
Sensing range min. 30 mm
Sensing range max. 2,000 mm
Adjustable switching threshold for background suppression 180 mm ... 2,000 mm
Reference object Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum distance between set sensing range and background (black 6% / white 90%) 85 mm, at a distance of 800 mm
Recommended sensing range for the best performance 200 mm ... 800 mm
Emitted beam
Light source LED
Type of light Infrared light
Shape of light spot Point-shaped
Light spot size (distance)
