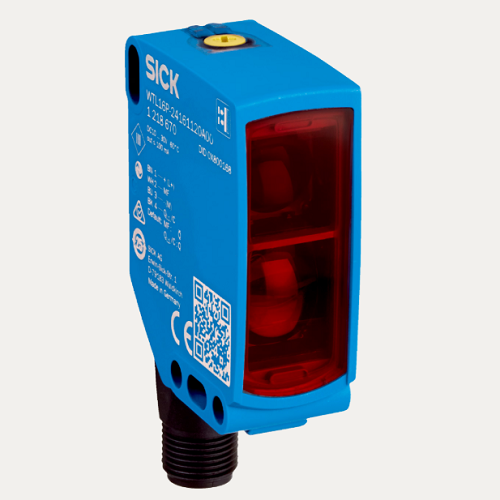

WTB26P-24161120A00 Part no.: 1222710 Photoelectric sensors

Category： SICK
Views：52
Product description：WTB26P-24161120A00 Part no.: 1222710 Photoelectric sensors Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range Sensing range min.
Order online

WTB26P-24161120A00 Part no.: 1222710

Photoelectric sensors

Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Sensing range
Sensing range min. 30 mm
Sensing range max. 900 mm
Preset switching threshold 900 mm
Reference object Object with 90% remission factor (complies with standard white according to DIN 5033)
Emitted beam
Light source PinPoint LED
Type of light Visible red light
Shape of light spot Point-shaped
Light spot size (distance) Ø 7 mm (700 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.0° (at Ta = +23 °C)
