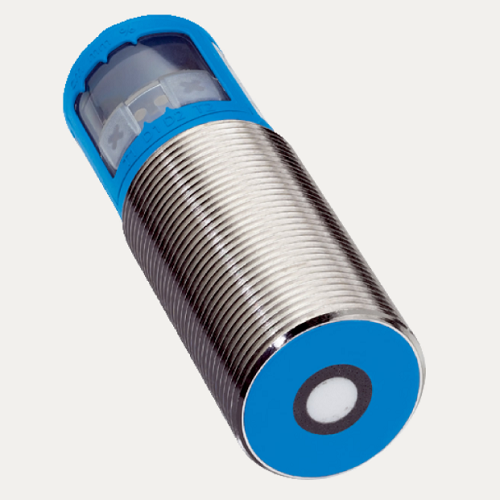

UM30-213113 Part no.: 6036918 Ultrasonic distance sensors

UM30-213113 Part no.: 6036918 Ultrasonic distance sensors

Operating range, limiting range 200 mm ... 1,300 mm, 2,000 mm
Target Natural objects
Resolution ≥ 0.18 mm
Repeatability ± 0.15 % 1)
Measurement accuracy ± 1 % 2) 3)
Temperature compensation ✔
Response time 92 ms 4)
Output time 23 ms
Ultrasonic frequency (typical) 200 kHz
Detection area (typical) See diagrams
Additional function Teach-in of analog output, scaling of analog outputs, Invertable analog output, automatic selection of analog current or voltage output, synchronization of up to 50 sensors, multiplexing: no cross talk of up to 50 sensors, adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam, Display (can be deactivated), reset to factory default
Safety-related parameters
MTTFD 101 years
DC
