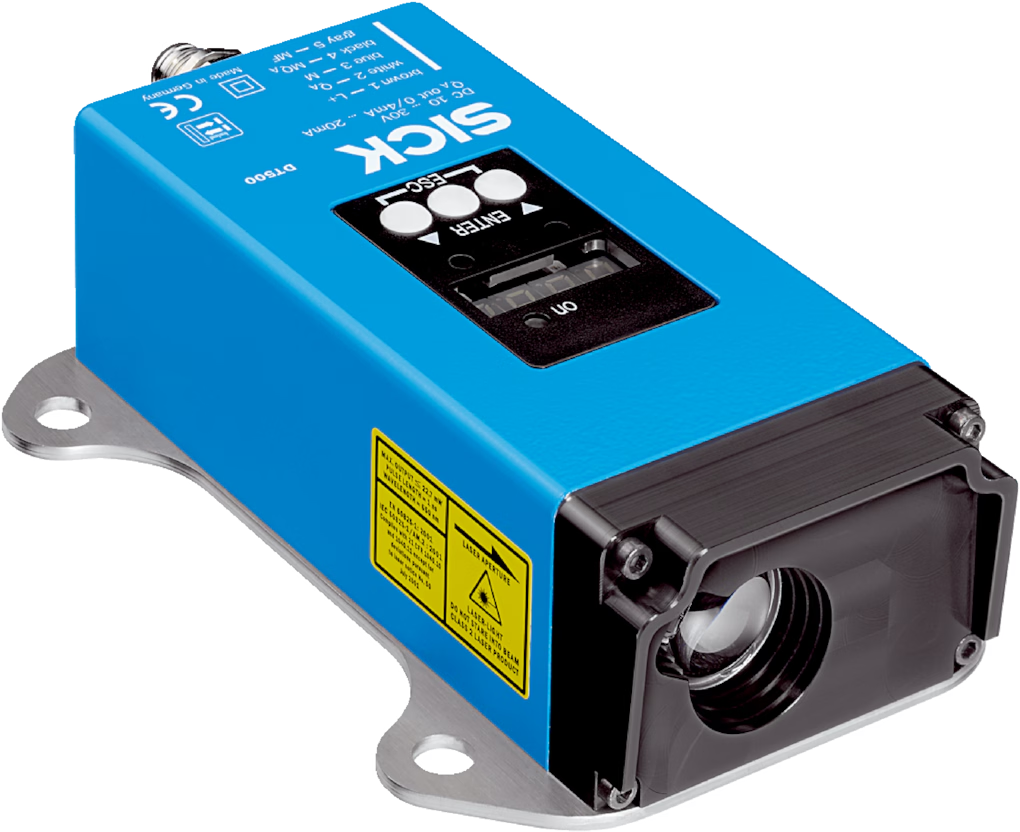

DT500-A111 Laser distance sensors Part no.: 1026515

Category： SICK
Views：41
Product description：DT500-A111 Laser distance sensors Part no.: 1026515 Measuring range 0.2 m ... 30 m, 90% remission factor 1) 2) 0.8 m ... 15 m, 6% remission factor 1) 2) Target Natural objects Resolution 12
Order online

Measuring range

0.2 m ... 30 m, 90% remission factor ¹⁾ ²⁾

0.8 m ... 15 m, 6% remission factor ¹⁾ ²⁾

Target

Natural objects

Resolution

12 bit

Repeatability

1 mm ³⁾ ⁴⁾

Measurement accuracy

± 3 mm

Response time

250 ms

Output time

250 ms

Light source

Laser, red ⁵⁾
visible red light

Type of light

Visible red light

Laser class

2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)

Typ. light spot size (distance)

10 mm (at 7 m)

45 mm (at 30 m)

100 mm (at 70 m)
