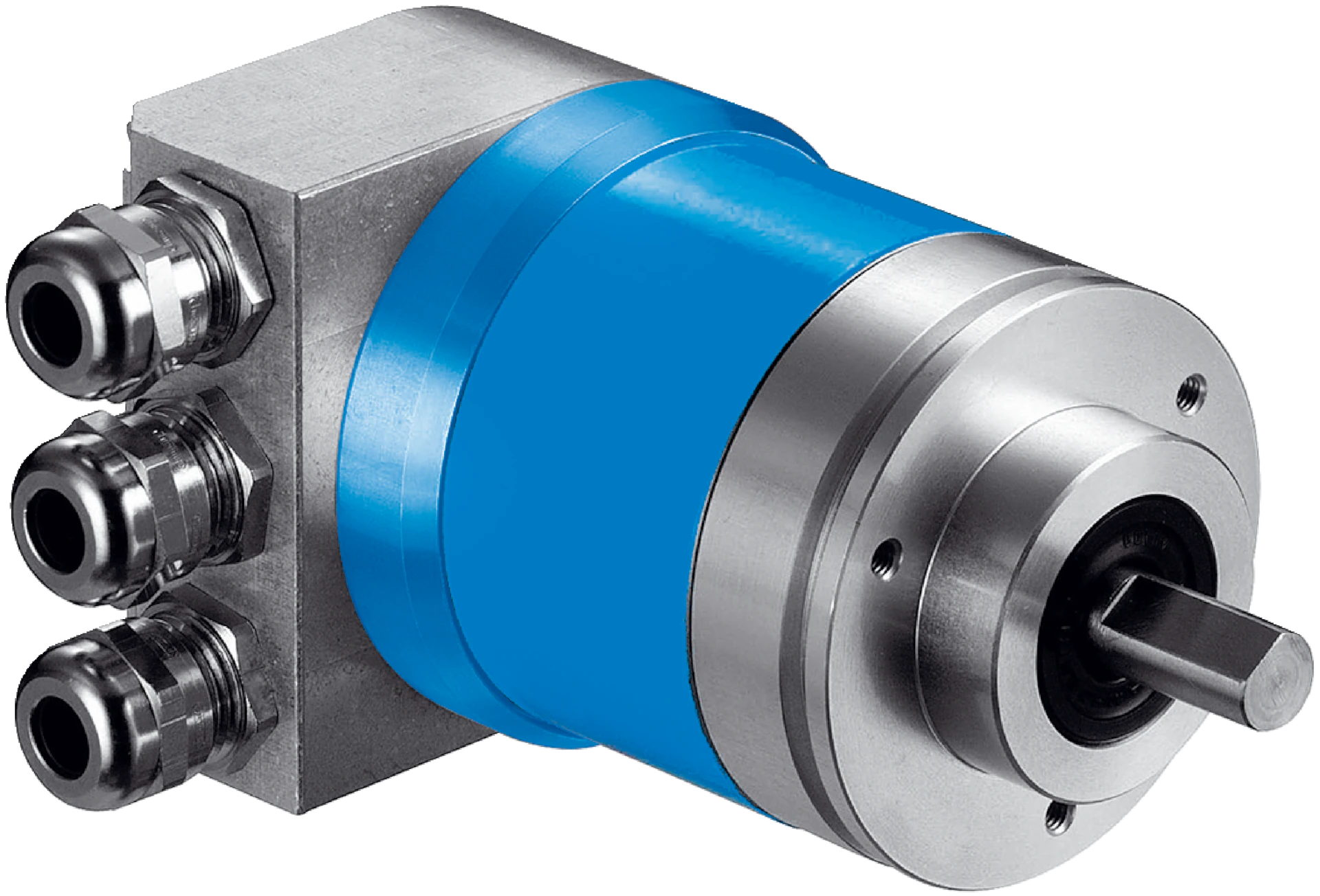

ATM60-P4H13X13 Encoder Part no.: 1030013

Category： SICK
Views：44
Product description：ATM60-P4H13X13 Encoder Part no.: 1030013 Number of steps per revolution (max. resolution) 8,192 (13 bit) Number of revolutions 8,192 (13 bit) Max. resolution (number of steps per revolution x numbe
Order online

ATM60-P4H13X13 Encoder Part no.: 1030013 Number of steps per revolution (max. resolution)	8,192 (13 bit)
Number of revolutions	8,192 (13 bit)
Max. resolution (number of steps per revolution x number of revolutions)	13 bit x 13 bit (8,192 x 8,192)
Measuring step	0.043°
Error limits G	± 0.25° ¹⁾
Repeatability standard deviation σ_r	0.1° ²⁾

¹⁾ In accordance with DIN ISO 1319-1, position of the upper and lower error limit depends on the installation situation, specified value refers to a symmetrical position, i.e. deviation in upper and lower direction is the same.

²⁾ In accordance with DIN ISO 55350-13; 68.3% of the measured values are inside the specified area.
