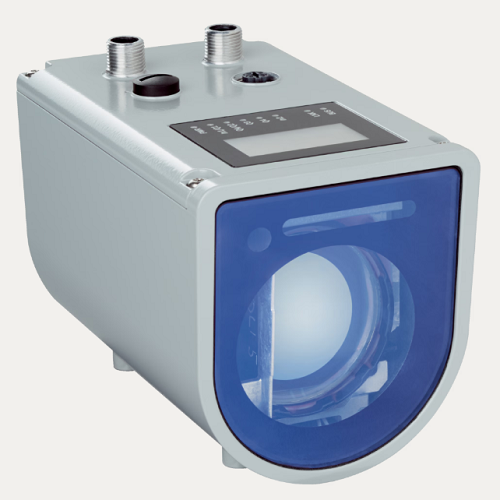

DT1000-S11101 Part no.: 1075436 Laser distance sensors

Category： SICK
Views：9
Product description：DT1000-S11101 Part no.: 1075436 Laser distance sensors Measurement principle HDDM+ Measuring range 0.2 m ... 155 m, 6% remission factor 1) 2) 3) 0.2 m ... 460 m, 90% remission factor 1) 2) 3)
Order online

DT1000-S11101 Part no.: 1075436 Laser distance sensors

Measurement principle HDDM+
Measuring range
0.2 m ... 155 m, 6% remission factor 1) 2) 3)

0.2 m ... 460 m, 90% remission factor 1) 2) 3)

Target Natural objects
Resolution 0.001 mm ... 100 mm, adjustable 4)
Repeatability ≥ 1 mm, See repeatability characteristic lines 1) 5) 6) 7)
Measurement accuracy Typ. ± 15 mm 8) 9)
Response time 3 ms ... 384 ms 7)
Measurement cycle time
1 ms

4 ms

16 ms

64 ms

128 ms

Output time ≥ 1 ms 10)
