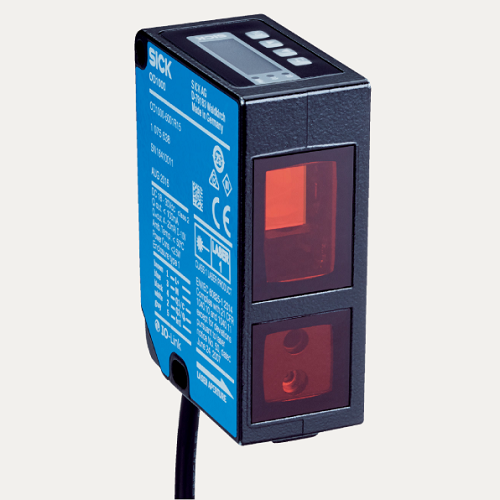

OD1000-6001R15 Part no.: 1075638 Laser distance sensors

OD1000-6001R15 Part no.: 1075638 Laser distance sensors

Measuring range 200 mm ... 1,000 mm 1)
Target Natural objects
Repeatability 0.4 mm 2) 3)
Linearity ± 1.5 mm 2) 4)
Response time ≥ 1.5 ms 5)
Output time ≥ 0.33 ms
Light source Laser, red
visible red light
Type of light Visible red light
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) 6)
Typ. light spot size (distance) 1.5 mm x 1.5 mm (200 mm ... 1,000 mm)
Additional function
Adjustable average value or media filter

Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB)

Teach-in of digital output

Invertable digital output

Teach-in of analog output

Invertable analog output

Switchable analog output (mA / V)

Multifunctional input: laser off / external teach-in / deactivated

Switch-off display

Lock user interface
