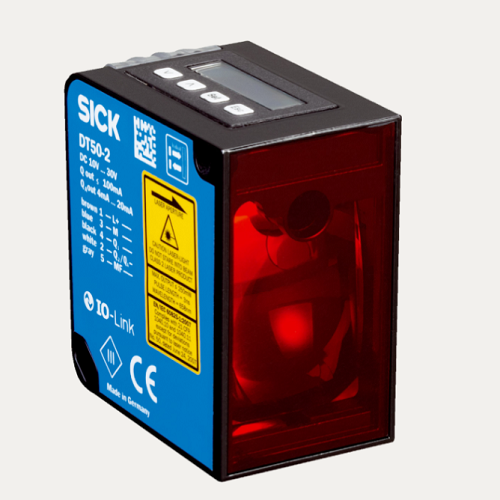

DT50-2B215552 Part no.: 1075271 Laser distance sensors

DT50-2B215552 Part no.: 1075271 Laser distance sensors

Measuring range
200 mm ... 30,000 mm, 90% remission factor 1) 2)

200 mm ... 17,000 mm, 18% reflection factor

200 mm ... 10,000 mm, 6% remission factor

Target Natural objects
Resolution 0.1 mm
Repeatability ≥ 0.5 mm 2) 3) 4)
Measurement accuracy ± 7 mm 4)
Response time 1.67 ms ... 150 ms, 1.67 ms / 6.67 ms / 16.67ms / 50 ms / 150 ms 5) 6)
Switching frequency 500 Hz / 125 Hz / 50 Hz / 16.6 Hz / 5.5 Hz 5) 6)
Output time 0.67 ms / 2.67 ms / 6.67 ms / 20 ms / 60 ms 5) 7)
Light source Laser, red 8)
Type of light Visible red light
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014)
