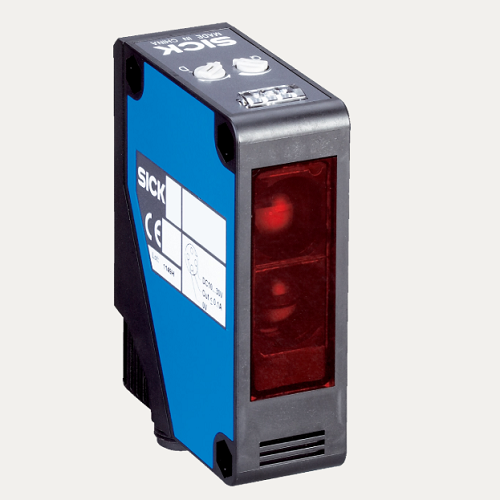

WL280-2P2431 Part no.: 6044736 Photoelectric sensors

WL280-2P2431 Part no.: 6044736 Photoelectric sensors

Functional principle Photoelectric retro-reflective sensor
Functional principle detail With minimum distance to reflector (dual lens system)
Dimensions (W x H x D) 23.5 mm x 74.5 mm x 63 mm
Housing design (light emission) Rectangular
Sensing range max.
0.01 m ... 15 m 1)

0.01 m ... 12 m 2)

Sensing range
0.01 m ... 13 m 1)

0.01 m ... 11 m 2)

Type of light Visible red light
Light source LED 3)
Light spot size (distance) Ø 260 mm (8 m)
Adjustment Potentiometer

1) Reflector PL80A.

2) Reflector P250.

3) Average service life: 100,000 h at TU = +25 °C.
