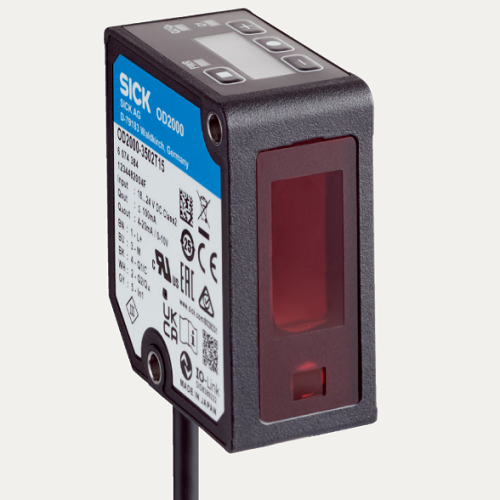

OD2000-3502T15 Part no.: 6074384 Laser distance sensors

Category： SICK
Views：6
Product description：OD2000-3502T15 Part no.: 6074384 Laser distance sensors Measuring range 100 mm ... 600 mm 1) Target Natural objects Repeatability 20 µm 2) 3) 4) Linearity ± 500 µm 2) 4) 5) Response time ≥ 0.533
Order online

OD2000-3502T15 Part no.: 6074384 Laser distance sensors

Measuring range 100 mm ... 600 mm 1)
Target Natural objects
Repeatability 20 µm 2) 3) 4)
Linearity ± 500 µm 2) 4) 5)
Response time ≥ 0.533 ms 6)
Measuring frequency ≤ 7.5 kHz
Output time ≥ 0.1333 ms
Light source Laser, red
Type of light Visible red light
Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014) 7)
Typ. light spot size (distance) Ø 600 µm (350 mm)
Additional function
Adjustable average value or media filter

Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB)

Teach-in of digital output

Invertable digital output

Teach-in of analog output

Invertable analog output
