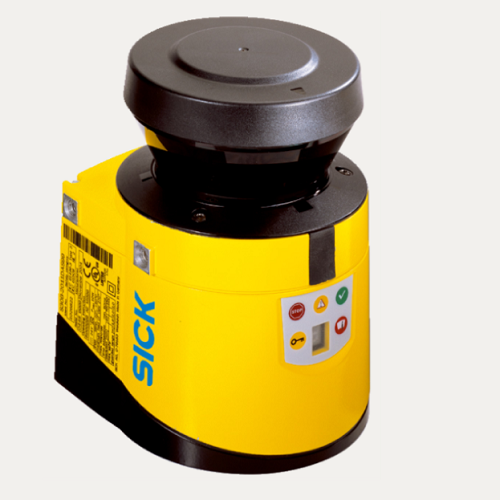

S30B-3011GB Part no.: 1057641 Safety laser scanners

S30B-3011GB Part no.: 1057641 Safety laser scanners

Sub product family S300 Expert
Model Sensor without system plug
Application Indoor
Protective field range 3 m
Warning field range 8 m (at 15 % reflectivity)
Distance measuring range 30 m
Type of field set Triple field sets
Number of field sets 16
Number of fields 48
Number of monitoring cases 32 1)
Scanning angle 270°
Resolution (can be configured) 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
Angular resolution 0.5°
Response time 80 ms 2)
Protective field supplement 100 mm
Number of multiple samplings 2 ... 16, configurable
