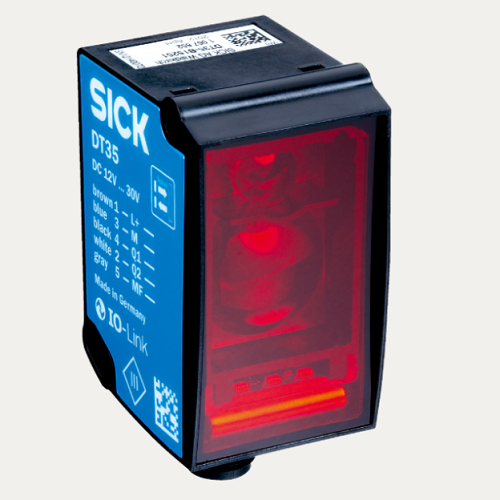

DT35-B15551 Part no.: 1057651 Laser distance sensors

Category： SICK
Views：5
Product description：DT35-B15551 Part no.: 1057651 Laser distance sensors Measuring range 50 mm ... 12,000 mm, 90% remission factor 1) 2) 50 mm ... 5,300 mm, 18 % remission 50 mm ... 3,100 mm, 6% remission factor
Order online

DT35-B15551 Part no.: 1057651 Laser distance sensors

Measuring range
50 mm ... 12,000 mm, 90% remission factor 1) 2)

50 mm ... 5,300 mm, 18 % remission

50 mm ... 3,100 mm, 6% remission factor

Target Natural objects
Resolution 0.1 mm
Repeatability ≥ 0.5 mm 2) 3) 4)
Measurement accuracy Typ. ± 10 mm 4)
Response time 4.5 ms ... 192.5 ms, 4.5 ms / 12.5 ms / 24.5 ms / 48.5 ms / 192.5 ms 5) 6)
Switching frequency 166 Hz/50 Hz/25 Hz/12 Hz/3 Hz 5) 6)
Output time 2 ms ... 64 ms, 2 ms/4 ms/8 ms/16 ms/64 ms 5) 7)
Light source Laser, red 8)
visible red light
Type of light Visible red light
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014)
