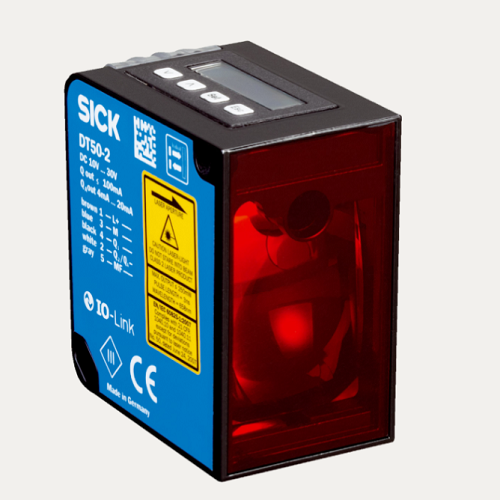

DT50-2B215252 Part no.: 1065661 Laser distance sensors

DT50-2B215252 Part no.: 1065661 Laser distance sensors

Measuring range
200 mm ... 30,000 mm, 90% remission factor 1) 2)

200 mm ... 17,000 mm, 18% reflection factor

200 mm ... 10,000 mm, 6% remission factor

Target Natural objects
Resolution 0.1 mm
Repeatability ≥ 0.5 mm 2) 3) 4)
Measurement accuracy ± 7 mm 4)
Response time 0.83 ms ... 75 ms, 0.83 ms / 3.33 ms / 8.33 ms / 25 ms / 75 ms 5) 6)
Switching frequency 1,000 Hz/250 Hz/100 Hz/33 Hz/11 Hz 5) 6)
Output time 0.33 ms/1.33 ms/3.33 ms/10 ms/30 ms 5) 7)
Light source Laser, red 8)
Type of light Visible red light
Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
