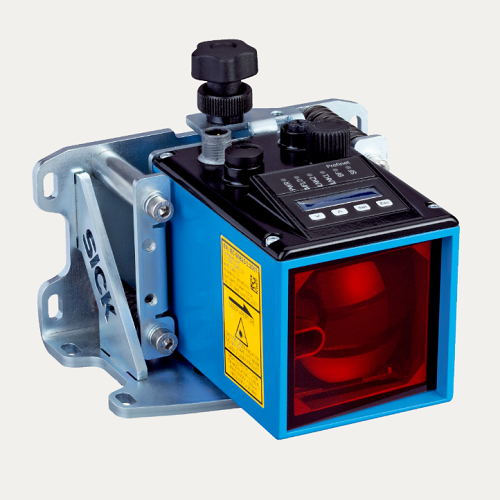

DL100-21AA2110 Part no.: 1066427 Laser distance sensors

DL100-21AA2110 Part no.: 1066427 Laser distance sensors

Measuring range 0.15 m ... 100 m, on “diamond grade” reflective tape
Scope Indoor
Target Reflector
Resolution 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
Repeatability 0.5 mm 1)
Measurement accuracy ± 2 mm 2)
Response time 2 ms
Measurement cycle time 1 ms
Output time 1 ms
Light source Laser, red 3)
visible red light
Type of light Visible red light
Laser class 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
Typ. light spot size (distance) 5 mm + (2 mm x distance in m)
Max. movement speed 15 m/s
Acceleration (max.) ≤ 15 m/s²
