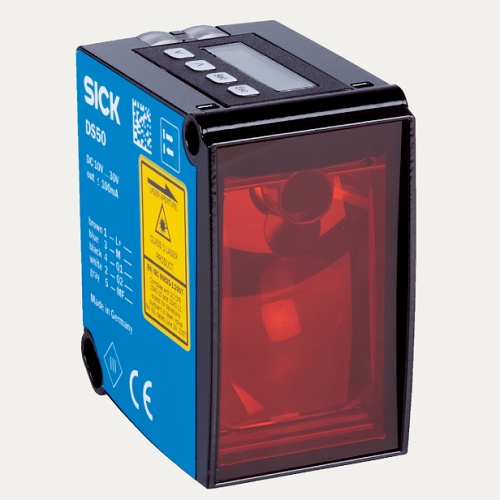

DS50-P1112 Part no.: 1047402 Laser distance sensors

DS50-P1112 Part no.: 1047402 Laser distance sensors

Measuring range
200 mm ... 10,000 mm, 90% remission factor

200 mm ... 6,000 mm, 18 % remission

200 mm ... 4,000 mm, 6% remission factor

Target Natural objects
Resolution 1 mm 1)
Repeatability ≥ 2.5 mm 2) 3) 4)
Measurement accuracy ± 10 mm 1) 5)
Response time 10 ms ... 50 ms, 10 ms / 50 ms 4)
Switching frequency 50 Hz / 10 Hz 4)
Light source Laser, red
visible red light
Type of light Visible red light
Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014) 6)
Typ. light spot size (distance) 15 mm x 15 mm (10 m)
Additional function
Set moving average: fast/slow

Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB)
