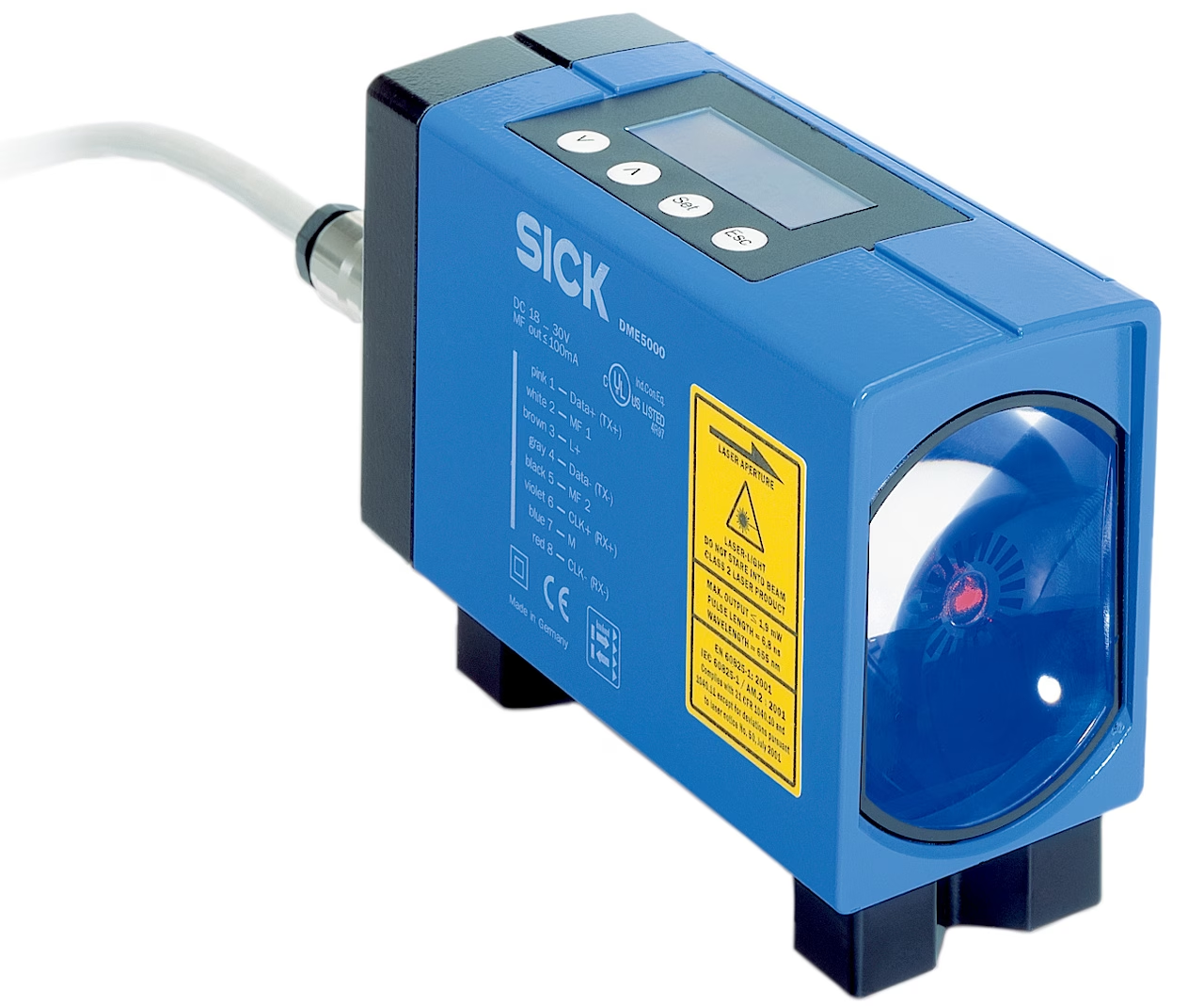

DME5000-111 Part no.: 1022949 Laser ranging

Category： SICK
Views：10
Product description：DME5000-111 Part no.: 1022949 Laser ranging Measuring range 0.15 m ... 70 m, on “diamond grade” reflective tape 1) Target Reflector Resolution 0.05 mm ... 5 mm Repeatability 0.5 mm 1) 2) Measurem
Order online

DME5000-111 Part no.: 1022949 Laser ranging

Measuring range

0.15 m ... 70 m, on “diamond grade” reflective tape 1)
Target Reflector
Resolution 0.05 mm ... 5 mm
Repeatability 0.5 mm 1) 2)
Measurement accuracy ± 2 mm
Response time 6 ms
Output time 1 ms
Light source Laser, red 3)
visible red light
Type of light Visible red light
Laser class 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
Typ. light spot size (distance)
130 mm (at 70 m)

270 mm (at 150 m)

360 mm (at 220 m)

Max. movement speed 10 m/s
Safety-related parameters
