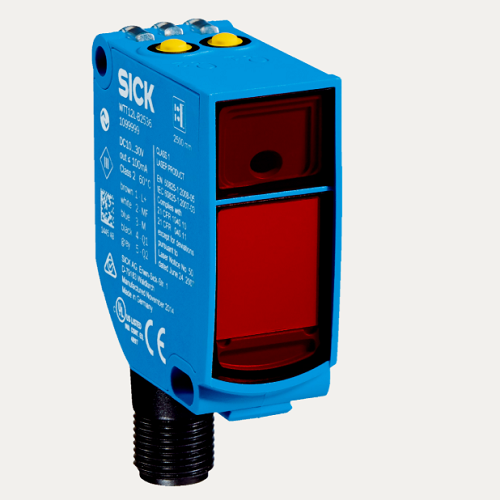

WTT12LC-B2563 Part no.: 1072532 Laser distance sensors

WTT12LC-B2563 Part no.: 1072532 Laser distance sensors

Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression, Optical time-of-flight
Housing design (light emission) Rectangular
Sensing range max. 50 mm ... 3,800 mm 1)
Sensing range
100 mm ... 3,800 mm 2)

1)

Distance value
Measuring range 50 mm ... 3,800 mm 1)
Resolution 1 mm
Repeatability 1,1 mm ... 3,0 mm 3) 4) 5)
Accuracy Typ. ± 15 mm
Type of light Visible red light
Light source Laser 6)
