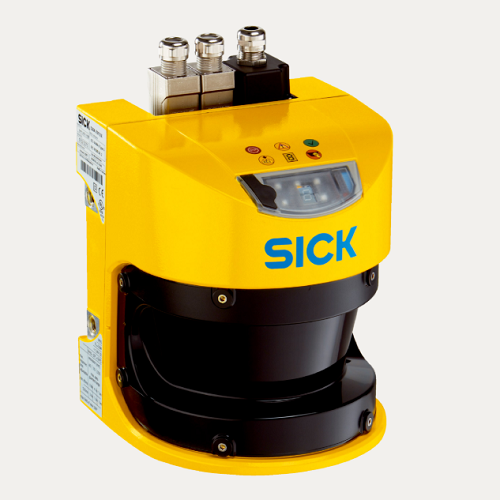

S30A-7111CP Part no.: 1045654 Laser scanning

S30A-7111CP Part no.: 1045654 Laser scanning

Usage S3000 PROFINET IO does not have any local inputs or outputs and is only operated in a network with corresponding controller.
Model Sensor without system plug
Application Indoor
Protective field range 7 m
Warning field range 49 m (20 m at 20 % reflectivity)
Distance measuring range 49 m
Number of simultaneously monitored protective fields 2
Type of field set Dual field sets
Number of field sets 4
Number of fields 8
Number of monitoring cases 4
Scanning angle 190°
Resolution (can be configured) 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
Angular resolution 0.5°, 0.25°, depending on range and resolution
Response time 60 ms 1)
Protective field supplement 100 mm
Number of multiple samplings
