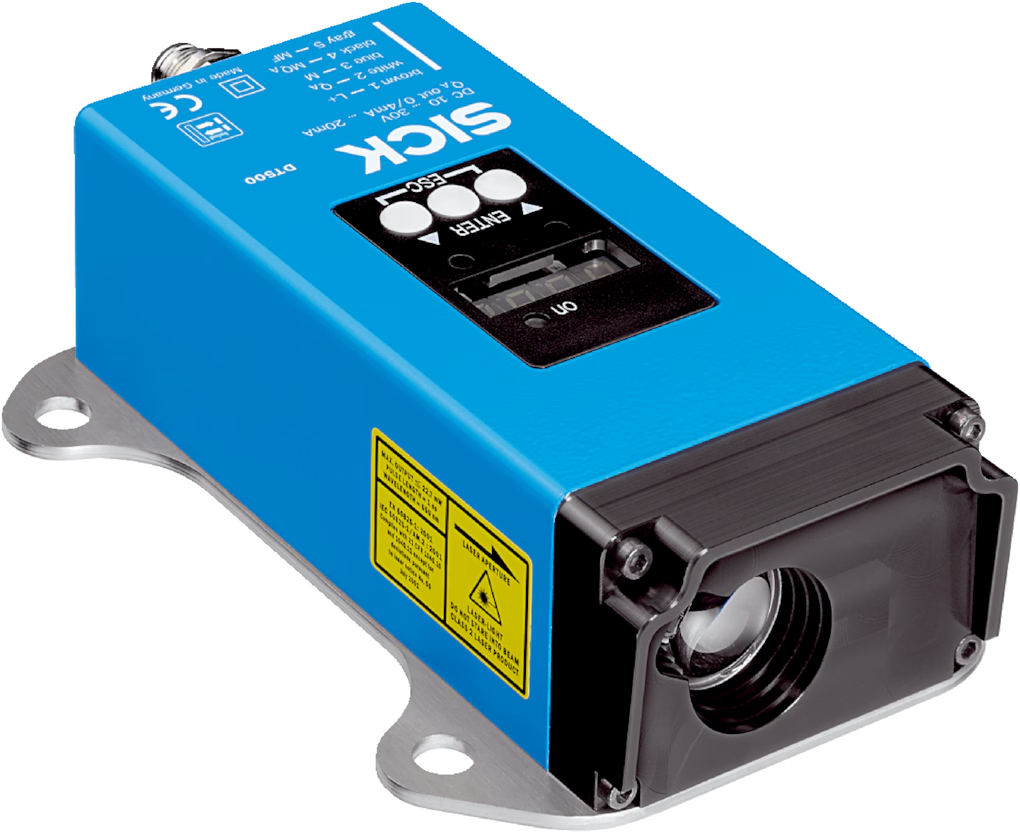

DT500-A611 Laser distance sensors Part no.: 1040467

Category： SICK
Views：8
Product description：DT500-A611 Laser distance sensors Part no.: 1040467 Measuring range 0.2 m ... 70 m, 90% remission factor 1) 2) 0.2 m ... 30 m, 6% remission factor 1) 2) Target Natural objects Resolution 12
Order online

DT500-A611 Laser distance sensors Part no.: 1040467 Measuring range	0.2 m ... 70 m, 90% remission factor ¹⁾ ²⁾ 0.2 m ... 30 m, 6% remission factor ¹⁾ ²⁾
Target	Natural objects
Resolution	12 bit
Repeatability	1 mm ³⁾ ⁴⁾
Measurement accuracy	± 3 mm
Response time	≥ 150 ms
Output time	150 ms ... 6,000 ms
Light source	Laser, red ⁵⁾ visible red light
Type of light	Visible red light
Laser class	2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
Typ. light spot size (distance)	10 mm (at 7 m) 45 mm (at 30 m) 100 mm (at 70 m)
Heating	✔
