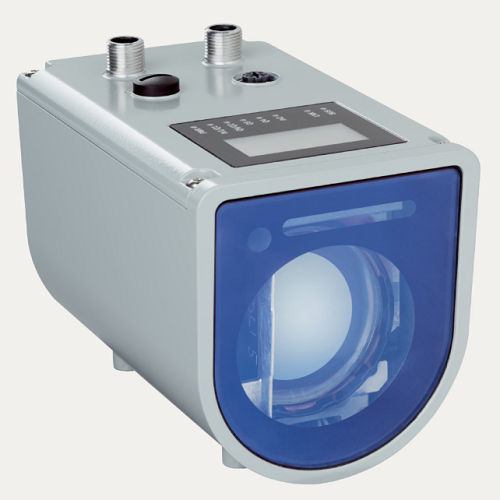

DL1000-S11112 Part no.: 1099756 Laser distance sensors

DL1000-S11112 Part no.: 1099756 Laser distance sensors

Measurement principle HDDM+
Measuring range 0.2 m ... 1,500 m, on “diamond grade” reflective tape 1) 2) 3)
Target Reflector
Resolution 0.001 mm ... 100 mm, adjustable 4)
Repeatability ≥ 1 mm, See repeatability characteristic lines 1) 5) 6) 7)
Measurement accuracy Typ. ± 15 mm, See measurement accuracy diagram 8)
Response time 3 ms ... 384 ms 7)
Measurement cycle time
1 ms

4 ms

16 ms

Output time ≥ 1 ms 9)
Light source
Infrared light (905 nm, measuring laser)

Visible red light (650 nm, Adjustment aid)

Laser class 1, even with simultaneous operation of measurement and alignment laser (IEC 60825-1:2014, EN 60825-1:2014)
