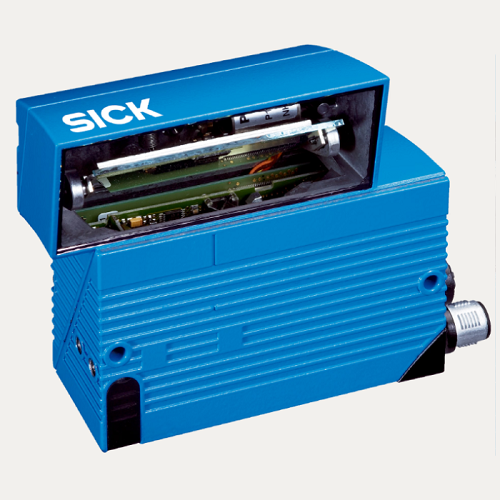

CLV650-6120 Part no.: 1042125 Fixed mount barcode scanners

Category： SICK
Views：44
Product description：CLV650-6120 Part no.: 1042125 Fixed mount barcode scanners Version Standard Density Connection type Ethernet Reading field Oscillating mirror Sensor type Oscillating mirror Optical focus Auto foc
Order online

CLV650-6120 Part no.: 1042125

Fixed mount barcode scanners

Version

Standard Density

Connection type

Ethernet

Reading field

Oscillating mirror

Sensor type

Oscillating mirror

Optical focus

Auto focus

Light source

Light spot, laser, Visible, Red, 658 nm

Laser class

2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)

Aperture angle

≤ 50°

Reading distance

125 mm ... 1,570 mm ¹⁾

Scanning frequency

600 Hz ... 1,000 Hz

Code resolution

0.25 mm ... 1 mm

Oscillating mirror functions	Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
Oscillation frequency	0.5 Hz ... 6.25 Hz
Angle of deflection	–20° ... 20°
