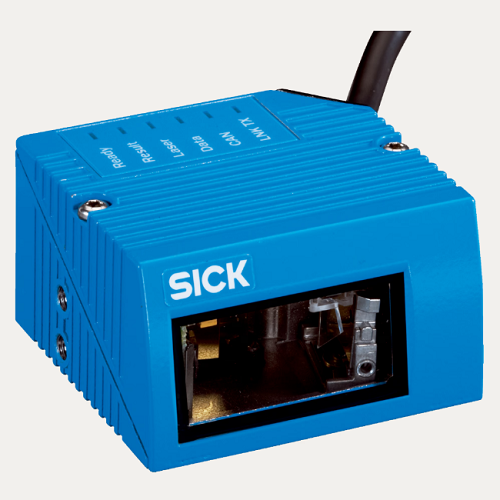

CLV620-1000 Part no.: 1041548 Fixed mount barcode scanners

Category： SICK
Views：67
Product description：CLV620-1000 Part no.: 1041548 Fixed mount barcode scanners Version Mid Range Connection type Cable Reading field Front Sensor type Raster scanner Optical focus Fixed focus Light source Light spo
Order online

CLV620-1000 Part no.: 1041548 Fixed mount barcode scanners Version	Mid Range
Connection type	Cable
Reading field	Front
Sensor type	Raster scanner
Optical focus	Fixed focus
Light source	Light spot, laser, Visible, Red, 655 nm
Laser class	2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
Aperture angle	≤ 50°
Reading distance	60 mm ... 365 mm ¹⁾
Scanning frequency	400 Hz ... 1,200 Hz
Code resolution	0.2 mm ... 1 mm
Raster height, number of lines, at distance	15 mm, 8, 200 mm
