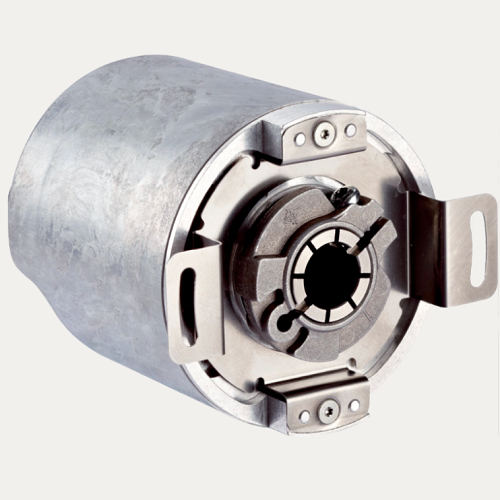

AFM60A-BHNB018x12 Part no.: 1059031 Absolute encoders

Category： SICK
Views：5
Product description：AFM60A-BHNB018x12 Part no.: 1059031 Absolute encoders Number of steps per revolution (max. resolution) 262,144 (18 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per rev
Order online

Number of steps per revolution (max. resolution)	262,144 (18 bit)
Number of revolutions	4,096 (12 bit)
Max. resolution (number of steps per revolution x number of revolutions)	18 bit x 12 bit (262,144 x 4,096)
Error limits G	0.03° ¹⁾
Repeatability standard deviation σ_r	0.002° ²⁾

¹⁾ In accordance with DIN ISO 1319-1, position of the upper and lower error limit depends on the installation situation, specified value refers to a symmetrical position, i.e. deviation in upper and lower direction is the same.

²⁾ In accordance with DIN ISO 55350-13; 68.3% of the measured values are inside the specified area.
