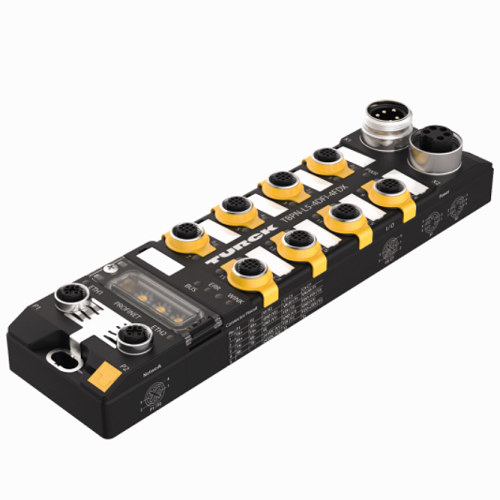

TBPN-L5-4FDI-4FDX Compact PROFIsafe / PROFINET Block I/O Module

TBPN-L5-4FDI-4FDX Compact PROFIsafe / PROFINET Block I/O Module

Compact PROFIsafe / PROFINET Block I/O Module
Safe Digital Inputs and Outputs
Order number: 100001826
PROFINET device
Integrated Ethernet switch
100 Mbps supported
2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
5-pin 7/8″ male connector for power supply
ATEX zone 2/22
CCC-Ex
Four secure digital SIL3 inputs
Four secure configurable digital SIL3 inputs or outputs
