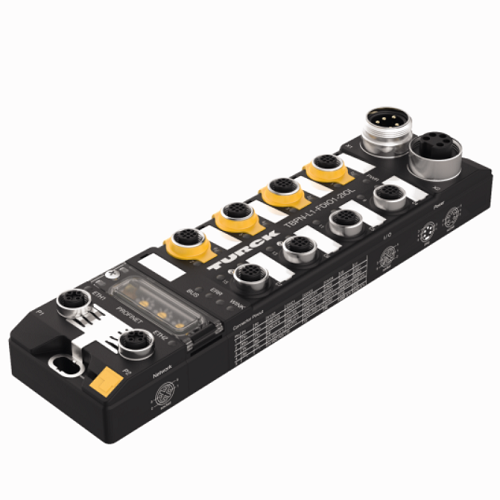

TBPN-L1-FDIO1-2IOL Compact PROFIsafe / PROFINET Block I/O Module

TBPN-L1-FDIO1-2IOL Compact PROFIsafe / PROFINET Block I/O Module

Compact PROFIsafe / PROFINET Block I/O Module
Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports
Order number: 6814053
PROFINET device
Integrated Ethernet switch
100 Mbps supported
2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
5-pin 7/8″ male connector for power supply
ATEX zone 2/22
CCC-Ex
Two secure digital SIL3-inputs
Two secure digital SIL3 channels as FDI or FDO (PP, PM)
Four secure digital SIL3 FDI channels
2 IO-Link Master V1.1 slots
