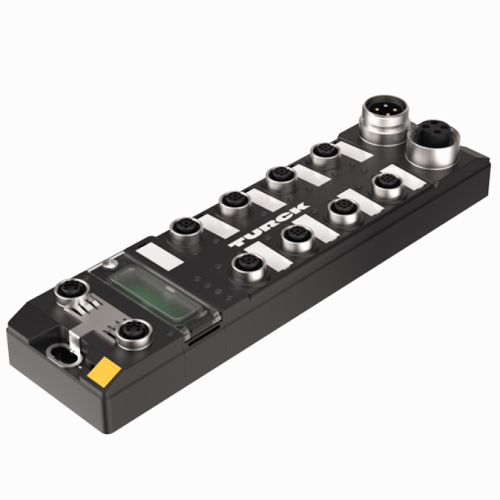

TBEN-L5-8IOL Compact Multiprotocol I/O Module for Ethernet

TBEN-L5-8IOL Compact Multiprotocol I/O Module for Ethernet

Compact Multiprotocol I/O Module for Ethernet
8 IO-Link Master Channels
4 Universal Digital PNP Channels, 2 A, Channel Diagnostics
Order number: 6814017
PROFINET device, EtherNet/IP device, Modbus TCP server, CC-Link IE field basic
Integrated Ethernet switch
Supports 10 Mbps/100 Mbps
2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
PROFINET S2 system redundancy
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
7/8″ male connector for power supply, 5-pin
Galvanically isolated voltage groups
ATEX zone 2/22
CCC-Ex
M12 ports for IO-Link master, 5-pin
IO-Link master port class A and port class B
IO-Link Protocol 1.1
Programmable ARGEE
