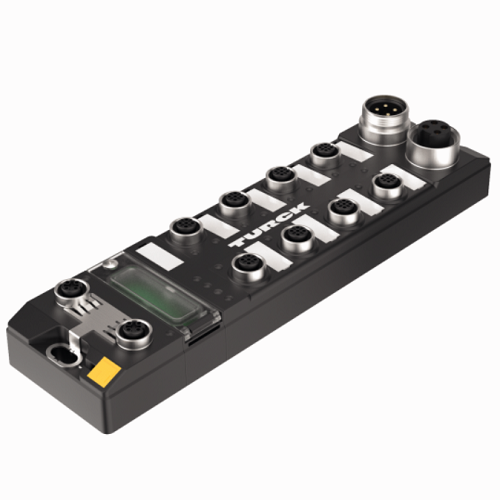

TBEN-L5-8DIP-8DOP Compact Multiprotocol I/O Module for Ethernet

TBEN-L5-8DIP-8DOP Compact Multiprotocol I/O Module for Ethernet

Compact Multiprotocol I/O Module for Ethernet
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
Order number: 6814086
PROFINET device, EtherNet/IP device, Modbus TCP server, CC-Link IE field basic
Integrated Ethernet switch
Supports 10 Mbps/100 Mbps
2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
PROFINET S2 system redundancy
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
7/8″ male connector for power supply, 5-pin
Galvanically isolated voltage groups
ATEX zone 2/22
CCC-Ex
Input diagnostics per port
Max. 2 A per output
Output diagnostics per channel
Programmable ARGEE
