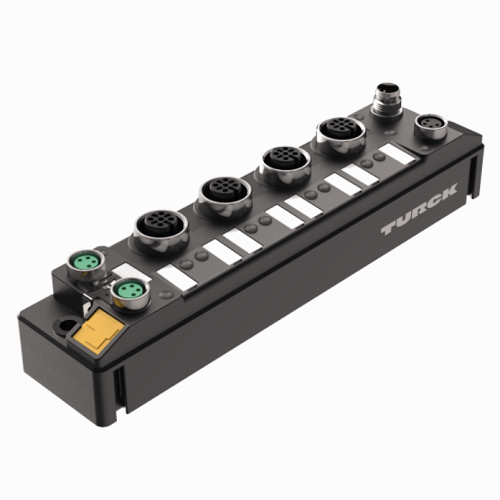

TBEN-S2-4AI Compact Multiprotocol I/O Module for Ethernet

TBEN-S2-4AI Compact Multiprotocol I/O Module for Ethernet

Compact Multiprotocol I/O Module for Ethernet
4 Analog Inputs, Configurable as Voltage, Current, RTD or Thermocouple
Order number: 6814025
PROFINET device, EtherNet/IP device, Modbus TCP server, CC-Link IE field basic
Integrated Ethernet switch
Supports 10 Mbps/100 Mbps
2 × M8, 4-pin, Ethernet fieldbus connection
PROFINET S2 system redundancy
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
4-pin M8 male connector for power supply
ATEX zone 2/22
CCC-Ex
Each channel is freely selectable for voltage, current, RTD, resistance or thermocouple
Measuring ranges:
Voltage: ±500 mV, ±100 mV, ±50 mV, ±1 V, 0/1–5 V, ±10 V, 0/2–10 V
Current: 0/4–20 mA, ±20 mA
RTD: PT100, NI100, PT200, PT500, PT1000, NI1000
Resistance: 0–100 Ω/400 Ω/2 kΩ/4 kΩ
Thermocouples: Type B, C, E, G, J, K, N, R, S, T
Inputs differential or common reference
Programmable ARGEE
