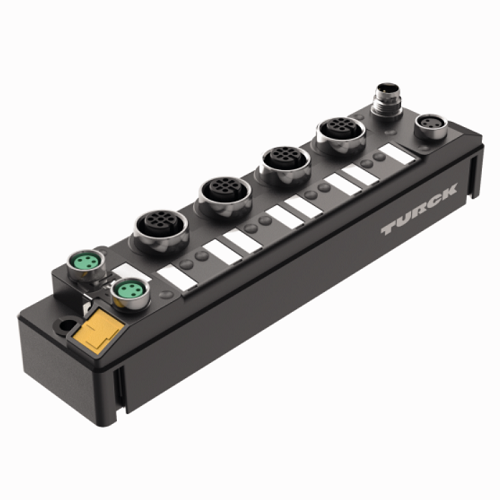

TBEN-S2-2COM-4DXP Compact Multiprotocol I/O Module for Ethernet

TBEN-S2-2COM-4DXP Compact Multiprotocol I/O Module for Ethernet

Compact Multiprotocol I/O Module for Ethernet
2 Configurable Serial Interfaces and 4 Universal Digital Channels
Order number: 6814031
PROFINET device, EtherNet/IP device, Modbus TCP server, CC-Link IE field basic
Integrated Ethernet switch
Supports 10 Mbps/100 Mbps
2 × M8, 4-pin, Ethernet fieldbus connection
PROFINET S2 system redundancy
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
4-pin M8 male connector for power supply
Galvanically isolated voltage groups
ATEX zone 2/22
CCC-Ex
Input diagnostics per group
Max. 0.5A per output
Output diagnostics per channel
Two freely selectable digital channels per port
Two serial ports can be selected as RS485 or RS232
Up to eight Modbus RTU slaves integrated per serial interface
Four freely selectable digital channels as input or output
Programmable ARGEE
