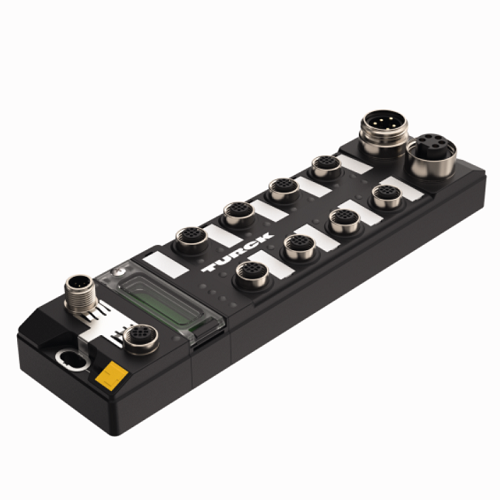

TBEN-L1-8DIP-8DOP Compact multiprotocol I/O module for Ethernet

TBEN-L1-8DIP-8DOP Compact multiprotocol I/O module for Ethernet

Compact multiprotocol I/O module for Ethernet
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
Order number: 6814006
PROFINET device, EtherNet/IP device or Modbus TCP server
Integrated Ethernet switch
Supports 10 Mbps/100 Mbps
2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
Input diagnostics per port
Max. 2 A per output
Output diagnostics per channel
