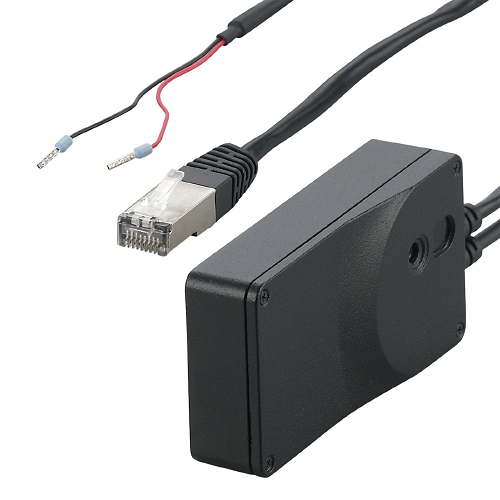

O3X100 ToF camera

O3X100 ToF camera

Type of light infrared light
Image resolution 3D[px] 224 x 172
Angle of aperture 3D[°] 60 x 45
Max. reading rate [Hz] 20
Application
Application output of 3D image data
Electrical data
Operating voltage[V] 20.4...28.8 DC; (EN 61131-2)
Current consumption[mA] < 500; (peak current pulsed; typical value: 160)
Power consumption[W] 3.7
Protection class III
Type of light infrared light
Wave length[nm] 850
Image sensor PMD 3D ToF-Chip
Internal lighting yes; (infrared: 850 nm invisible radiation LED)
