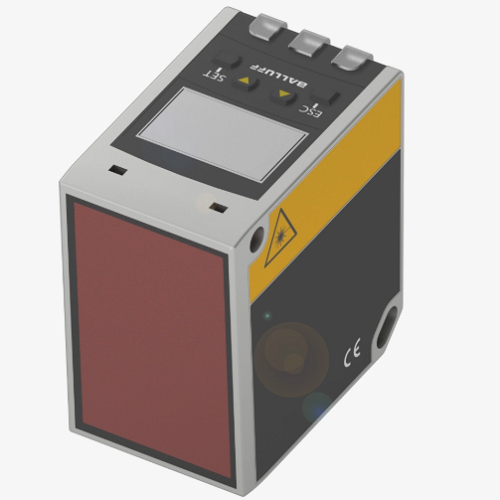

BOD001Y BOD 37M-LPR02-S115 Distance sensors with metal housing and red light laser and PMMA as material for the sensing surface

BOD001Y BOD 37M-LPR02-S115 Distance sensors with metal housing and red light laser and PMMA as material for the sensing surface

BOD001Y
BOD 37M-LPR02-S115

Distance sensors with metal housing and red light laser and PMMA as material for the sensing surface
Series
37M
Dimension
60 x 37 x 72.3 mm
Interface
RS485
Analog, voltage/analog, current 0.2…10 V/4…20 mA
linear rising/falling
2x PNP/NPN/push-pull NO/NC
Principle of operation
Photoelectric distance sensor BOD
Principle of optical operation
Light time-of-flight
