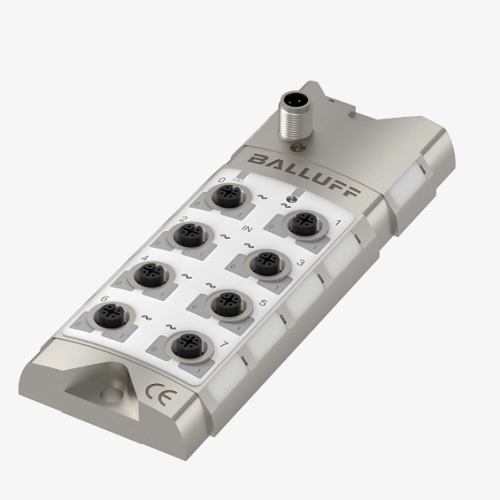

BNI00AJ BNI IOL-719-002-Z012 IO-Link sensor/actuator hubs for specialized applications

BNI00AJ BNI IOL-719-002-Z012 IO-Link sensor/actuator hubs for specialized applications

BNI00AJ
BNI IOL-719-002-Z012

IO-Link sensor/actuator hubs for specialized applications (Silver Line)
Interface
IO-Link 1.1
Operating voltage Ub
18...30.2 VDC
Connection (COM 1)
M12x1-Male, 4-pin, A-coded
Connection slots
8x M12x1-Female, 5-pin, A-coded
Analog inputs
8x Analog, voltage/analog, current/analog, temperature (0…10 V/-10…10 V/0…5 V/-5…5 V/5...10 V/4…20 mA/0…20 mA/Pt100/Pt1000/Thermocouple Type J/Thermocouple Type K)
